screen_photomode_save.c File Reference

#include "screen_photomode_save.h"
#include "filesystem.h"
#include "button.h"
#include "tft.h"
#include "touch.h"
#include "pixy.h"
#include "pixy_frame.h"
#include <stdlib.h>
#include <string.h>

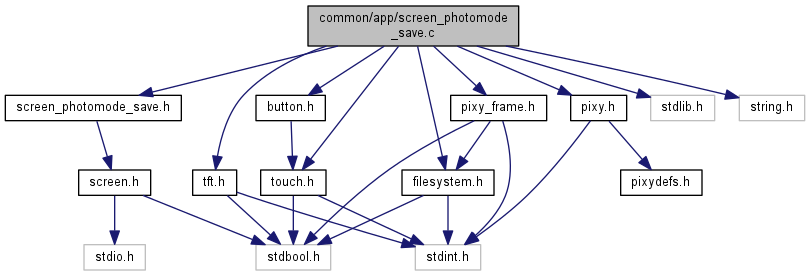

Include dependency graph for screen_photomode_save.c:

Data Structures
struct	FILE_LIST_ENTRY_S

Macros
#define	X_OFS   5

Typedefs
typedef struct FILE_LIST_ENTRY_S	FILE_LIST_ENTRY

Enumerations
enum	{   init, error, showlist, picking,   saving, done }

Functions
static void	b_back_cb (void *button)
static void	touchCB (void *touchArea, TOUCH_ACTION triggeredAction)
static void	enter (void *screen)
static void	update (void *screen)
static void	leave (void *screen)
SCREEN_STRUCT *	get_screen_photomodesave ()

Variables
static BUTTON_STRUCT	b_back
static TOUCH_AREA_STRUCT	a_area
static int	num_files_ok
static enum { ... }	state
static int	fontheight
static int	liststart
static const char *	picked_file
static FILE_LIST_ENTRY *	files_ok
static const char *	nomatch_text []
static unsigned char	bmpheader_data [0x7A]
static SCREEN_STRUCT	screen

Macro Definition Documentation

#define X_OFS   5

Typedef Documentation

typedef struct FILE_LIST_ENTRY_S FILE_LIST_ENTRY

Enumeration Type Documentation

anonymous enum

Enumerator
init
error
showlist
picking
saving
done

Function Documentation

static void b_back_cb ( void *  button )

static

Here is the call graph for this function:

Here is the caller graph for this function:

static void enter ( void *  screen )

static

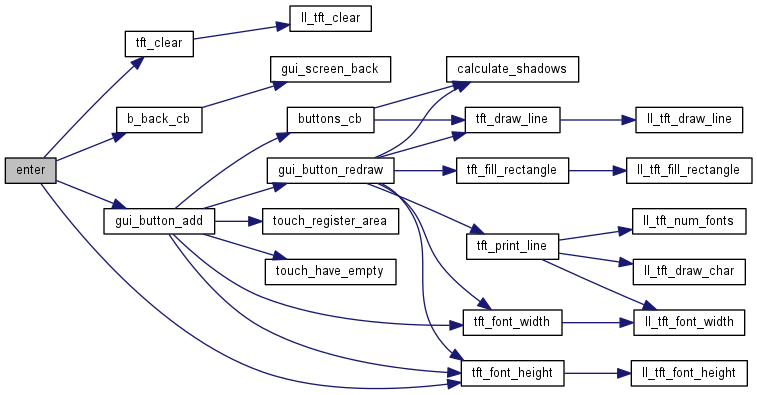

Here is the call graph for this function:

static void leave ( void *  screen )

static

Here is the call graph for this function:

static void touchCB ( void *  touchArea, TOUCH_ACTION  triggeredAction  )

static

Here is the call graph for this function:

Here is the caller graph for this function:

static void update ( void *  screen )

static

Here is the call graph for this function:

Variable Documentation

TOUCH_AREA_STRUCT a_area

static

BUTTON_STRUCT b_back

static

unsigned char bmpheader_data[0x7A]

static

Initial value:

= {
          0x42, 0x4d, 0xe2, 0xe3, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7a, 0x00,
          0x00, 0x00, 0x6c, 0x00, 0x00, 0x00, 0x3e, 0x01, 0x00, 0x00, 0xc6, 0x00,
          0x00, 0x00, 0x01, 0x00, 0x18, 0x00, 0x00, 0x00, 0x00, 0x00, 0x68, 0xe3,
          0x02, 0x00, 0x13, 0x0b, 0x00, 0x00, 0x13, 0x0b, 0x00, 0x00, 0x00, 0x00,
          0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x42, 0x47, 0x52, 0x73, 0x00, 0x00,
          0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
          0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
          0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
          0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00,
          0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
          0x00, 0x00
}

FILE_LIST_ENTRY* files_ok

static

int fontheight

static

int liststart

static

const char* nomatch_text[]

static

Initial value:

= {
    "Due to limitations of the filesystem",
    "implementation you can only write to",
    "existing files.",
    "",
    "The files need to have a .bmp",
    "extension and must be at least",
    "189410 bytes (185kb) large.",
    "Unfortunately there were no such",
    "files found in the root directory.",
    "",
    "Please create some files and come",
    "back again.",
    NULL
}

int num_files_ok

static

const char* picked_file

static

SCREEN_STRUCT screen

static

Initial value:

= {
    enter,
    leave,
    update
}

enum { ... } state
