Collaboration diagram for NummericUpDown:

Data Structures
struct	NUMUPDOWN_STRUCT

Typedefs
typedef void(*	NUMUPDOWN_CALLBACK) (void *numupdown, int16_t value)

Functions
bool	gui_numupdown_add (NUMUPDOWN_STRUCT *numupdown)

void	gui_numupdown_remove (NUMUPDOWN_STRUCT *numupdown)

void	gui_numupdown_update (NUMUPDOWN_STRUCT *numupdown)

void	gui_numupdown_redraw (NUMUPDOWN_STRUCT *numupdown)

Detailed Description

The NummericUpDown Gui Element

Typedef Documentation

typedef void(* NUMUPDOWN_CALLBACK) (void *numupdown, int16_t value)

Prototype for Event Listeners (called when the NummericUpDown value has changed)

Note: You should NOT execute long running things in this callback nor should you update the gui. But you can call gui_screen_navigate() for instance.

Parameters

numupdown	The pointer to the NUMUPDOWN_STRUCT where to corresponding NummericUpDown has changed it's value
value	The new value of the NummericUpDown

Function Documentation

bool gui_numupdown_add ( NUMUPDOWN_STRUCT * numupdown )

Adds a NummericUpDown. Your Callback will be called from now on, if the numupdown's value changes

Parameters

numupdown A Pointer to the preinitialized NUMUPDOWN_STRUCT

Returns: true on success

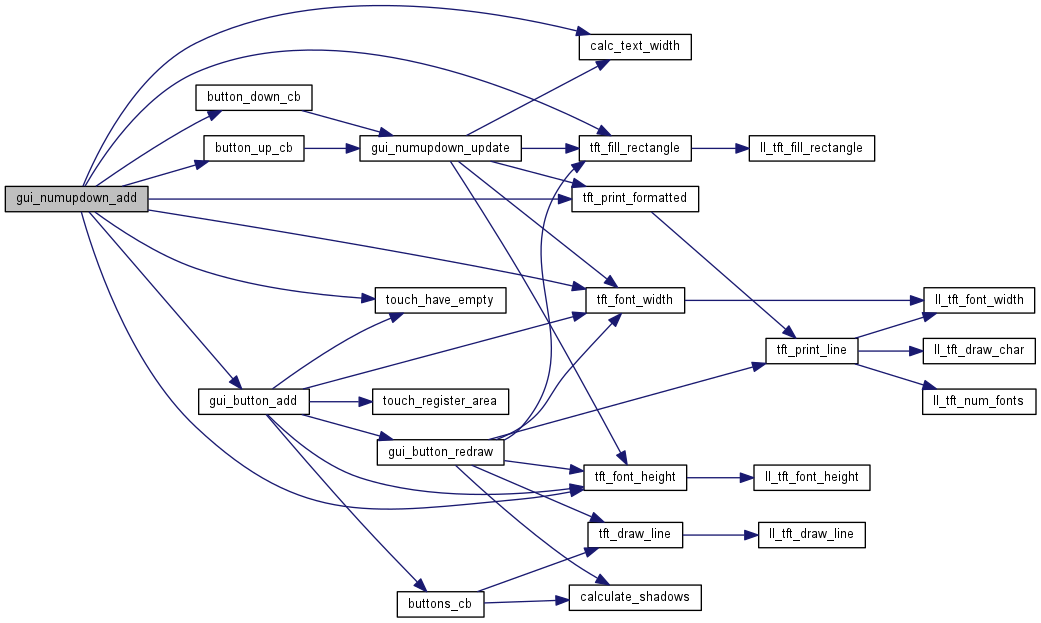

Here is the call graph for this function:

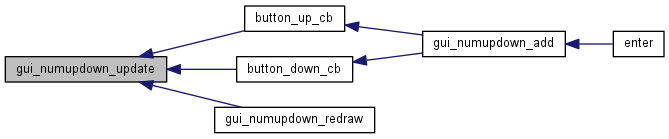

Here is the caller graph for this function:

void gui_numupdown_redraw ( NUMUPDOWN_STRUCT * numupdown )

Redraws the NummericUpDown. Call this method if you have to redraw the entire screen or if you want to draw a numupdown on top of an image.

Parameters

numupdown A Pointer to the NUMUPDOWN_STRUCT

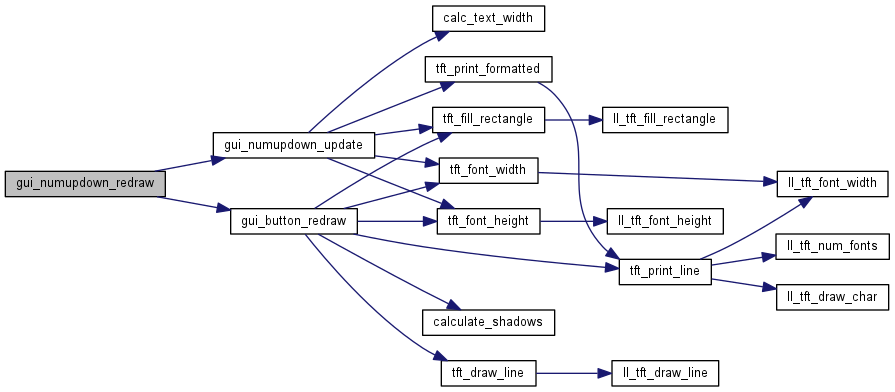

Here is the call graph for this function:

void gui_numupdown_remove ( NUMUPDOWN_STRUCT * numupdown )

Removes the NummericUpDown. You will no longer receive events for this numupdown. This function will not overdraw the region where the numupdown was located.

Parameters

numupdown A Pointer to the NUMUPDOWN_STRUCT

Here is the call graph for this function:
