Button

Collaboration diagram for Button:

Data Structures
struct	BUTTON_STRUCT

Macros
#define	AUTO   0
	Use this value instead of x2, y2 in the BUTTON_STRUCT to autocalculate the button width/height. More...

Typedefs
typedef void(*	BUTTON_CALLBACK) (void *button)

Functions
bool	gui_button_add (BUTTON_STRUCT *button)
void	gui_button_remove (BUTTON_STRUCT *button)
void	gui_button_redraw (BUTTON_STRUCT *button)

Detailed Description

The Button Gui-Element is a clickable, rectangular box with a label inside. When it is pressed and released you will be notified via the provided callback.

Macro Definition Documentation

#define AUTO   0

Use this value instead of x2, y2 in the BUTTON_STRUCT to autocalculate the button width/height.

Typedef Documentation

typedef void(* BUTTON_CALLBACK) (void *button)

Prototype for Event Listeners (called when the button is pressed)

Note

You should NOT execute long running things in this callback nor should you update the gui. But you can call gui_screen_navigate() for instance.

Parameters

button

The pointer to the BUTTON_STRUCT where to corresponding Button was pressed

Function Documentation

bool gui_button_add

(

BUTTON_STRUCT *

button

)

Adds a button. Your Callback will be called from now on, if the button was pressed

Parameters

button

A Pointer to the preinitialized BUTTON_STRUCT

Returns

true on success

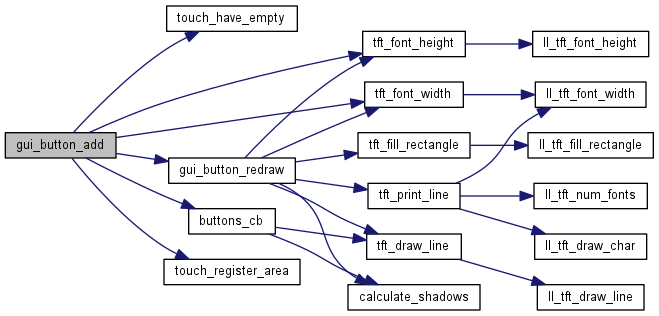

Here is the call graph for this function:

Here is the caller graph for this function:

void gui_button_redraw

(

BUTTON_STRUCT *

button

)

Redraws the button. Call this method if you have to redraw the entire screen or if you want to draw a button on top of an image.

Parameters

button

A Pointer to the BUTTON_STRUCT

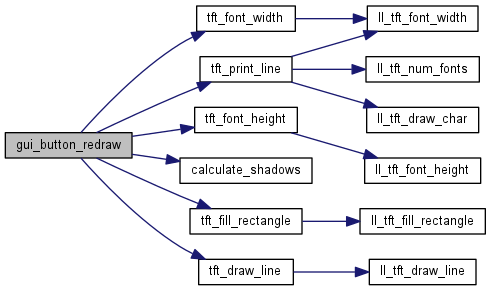

Here is the call graph for this function:

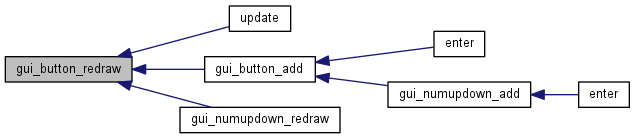

Here is the caller graph for this function:

void gui_button_remove

(

BUTTON_STRUCT *

button

)

Removes the button. You will no longer receive events for this button. This function will not overdraw the region where the button was located.

Parameters

button

A Pointer to the BUTTON_STRUCT

Here is the call graph for this function:

Here is the caller graph for this function:
