Filesystem

Data Structures
struct	FILE_DATE_STRUCT
struct	FILE_TIME_STRUCT
struct	FILE_STRUCT
struct	DIRECTORY_STRUCT
struct	FILE_HANDLE

Enumerations
enum	FILE_ATTRIBUTES {   F_RDO =0x01, F_HID =0x02, F_SYS =0x04, F_DIR =0x10,   F_ARC =0x20 }
enum	FILE_STATUS {   F_OK, F_EOF, F_EACCESS, F_INVALIDPARAM,   F_DISKERROR }

Functions
bool	filesystem_init ()
DIRECTORY_STRUCT *	filesystem_dir_open (const char *path)
void	filesystem_dir_close (DIRECTORY_STRUCT *dir)
FILE_HANDLE *	filesystem_file_open (const char *filename)
void	filesystem_file_close (FILE_HANDLE *handle)
FILE_STATUS	filesystem_file_seek (FILE_HANDLE *handle, uint32_t offset)
FILE_STATUS	filesystem_file_read (FILE_HANDLE *handle, uint8_t *buf, uint32_t size)
FILE_STATUS	filesystem_file_write (FILE_HANDLE *handle, uint8_t *buf, uint32_t size)

Detailed Description

The Filesystem Module provides access to files and directories of a the native filesystem.

Enumeration Type Documentation

enum FILE_ATTRIBUTES

File Attributes used by implementation See http://en.wikipedia.org/wiki/Design_of_the_FAT_file_system#attributes for detailed description

Enumerator
F_RDO	File is readonly. You cannot write to it.
F_HID	File is hidden.
F_SYS	File is a system file.
F_DIR	It's a directory and not a file.
F_ARC	File has the archive flag set (probably unused)

enum FILE_STATUS

Enum to represent the success or error-code of the filesystem_file_* functions

Enumerator
F_OK	Everything ok.
F_EOF	The write/read operation tried to write/read past the end of the file. This is not a fatal error.
F_EACCESS	The file can not be read/written due to access problems. This is a fatal error.
F_INVALIDPARAM	You passed invalid parameters to the function.
F_DISKERROR	A lowlevel disk-error occoured. This is a fatal error.

Function Documentation

void filesystem_dir_close

(

DIRECTORY_STRUCT *

dir

)

Closes a previously opened directory. Free's all allocated resources.

Parameters

dir	A Pointer to a DIRECTORY_STRUCT obtained by filesystem_dir_open().

Here is the call graph for this function:

Here is the caller graph for this function:

DIRECTORY_STRUCT* filesystem_dir_open

(

const char *

path

)

Opens a directory and returns a structure which contains all files/subdirectories.

See also

filesystem_dir_close()

Parameters

path	The absolute path to the directory to open/read

Returns

A Pointer to an initialized DIRECTORY_STRUCT on success, NULL on error

Here is the call graph for this function:

Here is the caller graph for this function:

void filesystem_file_close

(

FILE_HANDLE *

handle

)

Closes a file.

Parameters

handle

The FILE_HANDLE obtained by filesystem_file_open()

Here is the call graph for this function:

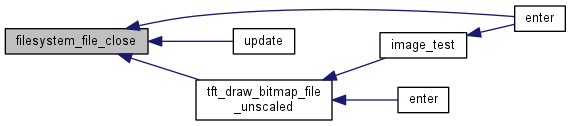

Here is the caller graph for this function:

FILE_HANDLE* filesystem_file_open

(

const char *

filename

)

Opens a file for read/writing.

Note

Depending on the implementation you may only open one file at a time

Parameters

filename

The absolute file path

Returns

A Pointer to a FILE_HANDLE on success, NULL on error.

Here is the call graph for this function:

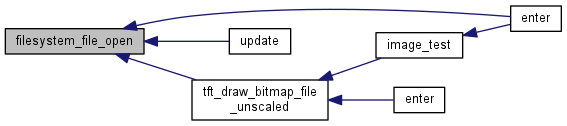

Here is the caller graph for this function:

FILE_STATUS filesystem_file_read	(	FILE_HANDLE *	handle,
		uint8_t *	buf,
		uint32_t	size
	)

Reads some bytes from an open file.

Parameters

handle	The FILE_HANDLE obtained by filesystem_file_open()
buf	The Buffer to write the bytes to
size	The number of bytes to read

Returns

F_OK on success, F_EOF if less than size bytes could be read, an error Code otherwise.

Here is the call graph for this function:

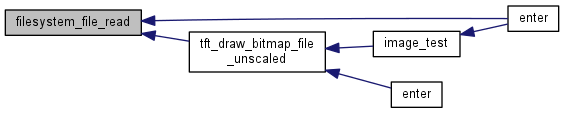

Here is the caller graph for this function:

FILE_STATUS filesystem_file_seek	(	FILE_HANDLE *	handle,
		uint32_t	offset
	)

Set's the read/write position to a new position

Parameters

handle	The FILE_HANDLE obtained by filesystem_file_open()
offset	The new read/write position in bytes (absolute).

Returns

F_OK on success, an error Code otherwise.

Here is the call graph for this function:

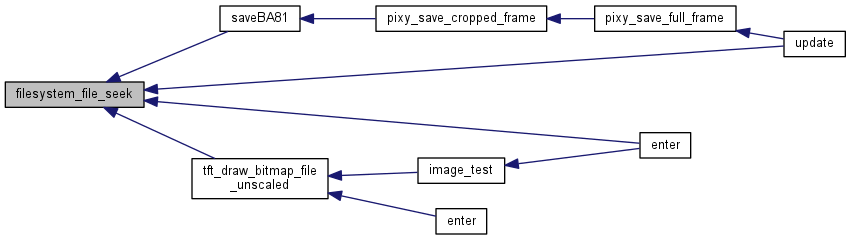

Here is the caller graph for this function:

FILE_STATUS filesystem_file_write	(	FILE_HANDLE *	handle,
		uint8_t *	buf,
		uint32_t	size
	)

Writes some bytes to a open file.

Note

Depending on the implementation the file may not be shrinked or expanded.

Parameters

handle	The FILE_HANDLE obtained by filesystem_file_open()
buf	The Buffer to take the bytes from
size	The number of bytes to write

Returns

F_OK on success, F_EOF if less than size bytes could be written, an error Code otherwise.

Here is the call graph for this function:

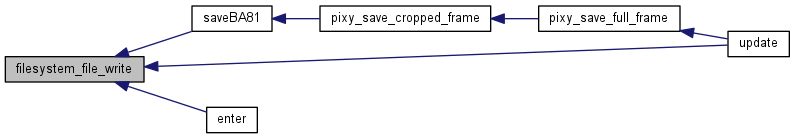

Here is the caller graph for this function:

bool filesystem_init

(

)

Initializes the filesystem. Call this method before using any filesystem_* functions

Returns

true on success

Here is the call graph for this function:

Here is the caller graph for this function:
