usbh_usr.h File Reference

#include "stm32f4_discovery.h"
#include "usbh_core.h"
#include <stdio.h>

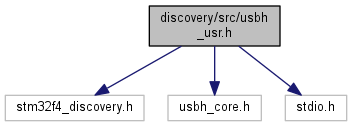

Include dependency graph for usbh_usr.h:

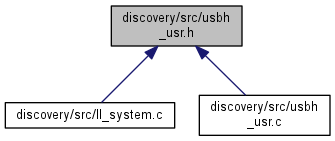

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	USBH_USR_Init (void)
	USBH_USR_Init. More...
void	USBH_USR_DeviceAttached (void)
	USBH_USR_DeviceAttached. More...
void	USBH_USR_ResetDevice (void)
	USBH_USR_ResetUSBDevice. More...
void	USBH_USR_DeviceDisconnected (void)
	USBH_DisconnectEvent Device disconnect event. More...
void	USBH_USR_OverCurrentDetected (void)
	USBH_USR_OverCurrentDetected Over Current Detected on VBUS. More...
void	USBH_USR_DeviceSpeedDetected (uint8_t DeviceSpeed)
	USBH_USR_DeviceSpeedDetected Displays the message on LCD for device speed. More...
void	USBH_USR_Device_DescAvailable (void *)
	USBH_USR_Device_DescAvailable. More...
void	USBH_USR_DeviceAddressAssigned (void)
	USBH_USR_DeviceAddressAssigned USB device is successfully assigned the Address. More...
void	USBH_USR_Configuration_DescAvailable (USBH_CfgDesc_TypeDef *cfgDesc, USBH_InterfaceDesc_TypeDef *itfDesc, USBH_EpDesc_TypeDef *epDesc)
	USBH_USR_Conf_Desc. More...
void	USBH_USR_Manufacturer_String (void *)
	USBH_USR_Manufacturer_String. More...
void	USBH_USR_Product_String (void *)
	USBH_USR_Product_String. More...
void	USBH_USR_SerialNum_String (void *)
	USBH_USR_SerialNum_String. More...
void	USBH_USR_EnumerationDone (void)
	EnumerationDone User response request is displayed to ask application jump to class. More...
USBH_USR_Status	USBH_USR_UserInput (void)
	USBH_USR_UserInput User Action for application state entry. More...
int	USBH_USR_MSC_Application (void)
	USBH_USR_MSC_Application. More...
void	USBH_USR_DeInit (void)
	USBH_USR_DeInit Deint User state and associated variables. More...
void	USBH_USR_DeviceNotSupported (void)
	USBH_USR_DeviceNotSupported Device is not supported. More...
void	USBH_USR_UnrecoveredError (void)
	USBH_USR_UnrecoveredError. More...

Variables
USBH_Usr_cb_TypeDef	USR_Callbacks

Function Documentation

void USBH_USR_Configuration_DescAvailable	(	USBH_CfgDesc_TypeDef *	cfgDesc,
		USBH_InterfaceDesc_TypeDef *	itfDesc,
		USBH_EpDesc_TypeDef *	epDesc
	)

USBH_USR_Conf_Desc.

Parameters

Configuration

descriptor

Return values

None

void USBH_USR_DeInit

(

void

)

USBH_USR_DeInit Deint User state and associated variables.

Parameters

None

Return values

None

void USBH_USR_Device_DescAvailable

(

void *

DeviceDesc

)

USBH_USR_Device_DescAvailable.

Parameters

device

descriptor

Return values

None

void USBH_USR_DeviceAddressAssigned

(

void

)

USBH_USR_DeviceAddressAssigned USB device is successfully assigned the Address.

Parameters

None

Return values

None

void USBH_USR_DeviceAttached

(

void

)

USBH_USR_DeviceAttached.

Parameters

None

Return values

None

void USBH_USR_DeviceDisconnected

(

void

)

USBH_DisconnectEvent Device disconnect event.

Parameters

None

Return values

Staus

void USBH_USR_DeviceNotSupported

(

void

)

USBH_USR_DeviceNotSupported Device is not supported.

Parameters

None

Return values

None

void USBH_USR_DeviceSpeedDetected

(

uint8_t

DeviceSpeed

)

USBH_USR_DeviceSpeedDetected Displays the message on LCD for device speed.

Parameters

Device

speed:

Return values

None

void USBH_USR_EnumerationDone

(

void

)

EnumerationDone User response request is displayed to ask application jump to class.

Parameters

None

Return values

None

void USBH_USR_Init

(

void

)

USBH_USR_Init.

Parameters

None

Return values

None

void USBH_USR_Manufacturer_String

(

void *

ManufacturerString

)

USBH_USR_Manufacturer_String.

Parameters

Manufacturer

String

Return values

None

int USBH_USR_MSC_Application

(

void

)

USBH_USR_MSC_Application.

Parameters

None

Return values

Staus

void USBH_USR_OverCurrentDetected

(

void

)

USBH_USR_OverCurrentDetected Over Current Detected on VBUS.

Parameters

None

Return values

None

void USBH_USR_Product_String

(

void *

ProductString

)

USBH_USR_Product_String.

Parameters

Product

String

Return values

None

void USBH_USR_ResetDevice

(

void

)

USBH_USR_ResetUSBDevice.

Parameters

None

Return values

None

void USBH_USR_SerialNum_String

(

void *

SerialNumString

)

USBH_USR_SerialNum_String.

Parameters

SerialNum_String

Return values

None

void USBH_USR_UnrecoveredError

(

void

)

USBH_USR_UnrecoveredError.

Parameters

None

Return values

None

USBH_USR_Status USBH_USR_UserInput

(

void

)

USBH_USR_UserInput User Action for application state entry.

Parameters

None

Return values

USBH_USR_Status

: User response for key button

Variable Documentation

USBH_Usr_cb_TypeDef USR_Callbacks
