Touch

Data Structures
struct	TOUCH_AREA_STRUCT
struct	POINT_STRUCT

Typedefs
typedef void(*	TOUCH_CALLBACK) (void *touchArea, TOUCH_ACTION triggeredAction)

Enumerations
enum	TOUCH_STATE { TOUCH_UP, TOUCH_DOWN }
enum	TOUCH_ACTION {   NONE =0x00, PEN_DOWN =0x01, PEN_UP =0x02, PEN_ENTER =0x04,   PEN_LEAVE =0x08, PEN_MOVE =0x10 }

Functions
bool	touch_init ()
bool	touch_add_raw_event (uint16_t x, uint16_t y, TOUCH_STATE state)
bool	touch_have_empty (unsigned char num)
bool	touch_register_area (TOUCH_AREA_STRUCT *area)
void	touch_unregister_area (TOUCH_AREA_STRUCT *area)
POINT_STRUCT	touch_get_last_point ()

Detailed Description

The Touch module provides access to the touch controller, and executes a callback if a certain region is touched

Typedef Documentation

typedef void(* TOUCH_CALLBACK) (void *touchArea, TOUCH_ACTION triggeredAction)

Prototype for Event Listeners (called for every occurring, hooked action)

Parameters

touchArea	The pointer to the TOUCH_AREA_STRUCT in which the event occurred
triggeredAction	The Action which occurred

Enumeration Type Documentation

enum TOUCH_ACTION

Enum to describe the hooked actions for which you want to receive events for. You can OR-combine them.

See also

touch_register_area

Enumerator
NONE	Do not receive any events.
PEN_DOWN	Receive an event when the pen goes down inside the region.
PEN_UP	Receive an event when the pen goes up inside the region.
PEN_ENTER	Receive an event when the pen enters the region (pen was down before)
PEN_LEAVE	Receive an event when the pen leaves the region (pen was inside region before)
PEN_MOVE	Receive an event when the pen moves inside the region (pen is down)

enum TOUCH_STATE

Enum to describe the current Touch State.

See also

touch_add_raw_event

Enumerator
TOUCH_UP	The display is currently not touched.
TOUCH_DOWN	The display is currently touched at some point.

Function Documentation

bool touch_add_raw_event	(	uint16_t	x,
		uint16_t	y,
		TOUCH_STATE	state
	)

Processes a native touch event. Call this function when the pen goes down (TOUCH_DOWN), when it moves (TOUCH_DOWN) and also when it goes up again (TOUCH_UP)! It's safe to call this function from an (SPI)-Interrupt.

Parameters

x	The x-Coordinate of the touch event
y	The y-Coordinate of the touch event
state	Whether the pen is up or down

Returns

True on success

POINT_STRUCT touch_get_last_point

(

)

Gets the last touched point

Returns

The Coordinates of the last touched points

Here is the caller graph for this function:

bool touch_have_empty

(

unsigned char

num

)

Checks whether or not we have memory to manage and track additional num TOUCH_AREA_STRUCTs

Parameters

num	The number of touch areas you would like to allocate

Returns

True if there's enough memory to allocate num TOUCH_AREAs

Here is the caller graph for this function:

bool touch_init

(

)

Initializes the Touch Controller. Call this method before using any touch_* functions

Returns

true on success

Here is the call graph for this function:

Here is the caller graph for this function:

bool touch_register_area

(

TOUCH_AREA_STRUCT *

area

)

Registers a new touch Area. You will receive events for this area from now on.

Parameters

area	A pointer to the configured TOUCH_AREA_STRUCT

Returns

True if everything was successful and the corresponding Touch Area will be monitored from now on

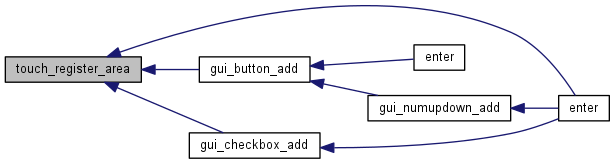

Here is the caller graph for this function:

void touch_unregister_area

(

TOUCH_AREA_STRUCT *

area

)

Unregisters a touch area. You will no longer receive events for this area

Parameters

area	A pointer to the TOUCH_AREA_STRUCT instance

Here is the caller graph for this function:
