This file contains definitions for STM32F4-Discovery Kit's Leds and push-button hardware resources. More...

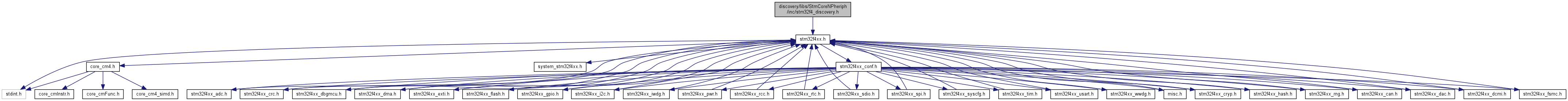

#include "stm32f4xx.h"
Go to the source code of this file.
Macros | |
| #define | LEDn 4 |
| #define | LED4_PIN GPIO_Pin_12 |
| #define | LED4_GPIO_PORT GPIOD |
| #define | LED4_GPIO_CLK RCC_AHB1Periph_GPIOD |
| #define | LED3_PIN GPIO_Pin_13 |
| #define | LED3_GPIO_PORT GPIOD |
| #define | LED3_GPIO_CLK RCC_AHB1Periph_GPIOD |
| #define | LED5_PIN GPIO_Pin_14 |
| #define | LED5_GPIO_PORT GPIOD |
| #define | LED5_GPIO_CLK RCC_AHB1Periph_GPIOD |
| #define | LED6_PIN GPIO_Pin_15 |
| #define | LED6_GPIO_PORT GPIOD |
| #define | LED6_GPIO_CLK RCC_AHB1Periph_GPIOD |
| #define | BUTTONn 1 |
| #define | USER_BUTTON_PIN GPIO_Pin_0 |
| Wakeup push-button. | |
| #define | USER_BUTTON_GPIO_PORT GPIOA |
| #define | USER_BUTTON_GPIO_CLK RCC_AHB1Periph_GPIOA |
| #define | USER_BUTTON_EXTI_LINE EXTI_Line0 |
| #define | USER_BUTTON_EXTI_PORT_SOURCE EXTI_PortSourceGPIOA |
| #define | USER_BUTTON_EXTI_PIN_SOURCE EXTI_PinSource0 |
| #define | USER_BUTTON_EXTI_IRQn EXTI0_IRQn |
Enumerations | |
| enum | Led_TypeDef { LED4 = 0, LED3 = 1, LED5 = 2, LED6 = 3 } |
| enum | Button_TypeDef { BUTTON_USER = 0 } |
| enum | ButtonMode_TypeDef { BUTTON_MODE_GPIO = 0, BUTTON_MODE_EXTI = 1 } |
Functions | |
| void | STM_EVAL_LEDInit (Led_TypeDef Led) |
| Configures LED GPIO. More... | |
| void | STM_EVAL_LEDOn (Led_TypeDef Led) |
| Turns selected LED On. More... | |
| void | STM_EVAL_LEDOff (Led_TypeDef Led) |
| Turns selected LED Off. More... | |
| void | STM_EVAL_LEDToggle (Led_TypeDef Led) |
| Toggles the selected LED. More... | |
| void | STM_EVAL_PBInit (Button_TypeDef Button, ButtonMode_TypeDef Button_Mode) |
| Configures Button GPIO and EXTI Line. More... | |
| uint32_t | STM_EVAL_PBGetState (Button_TypeDef Button) |
| Returns the selected Button state. More... | |
This file contains definitions for STM32F4-Discovery Kit's Leds and push-button hardware resources.
THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.
