Definitions used in the USB host library. More...

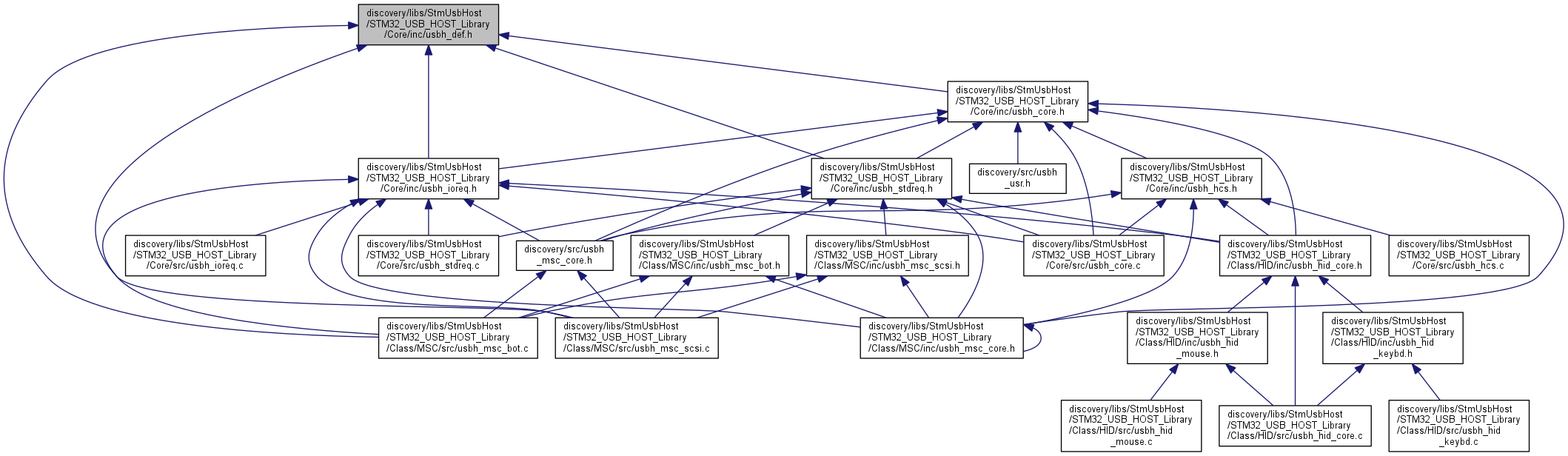

This graph shows which files directly or indirectly include this file:

Classes
union	uint16_t_uint8_t

struct	uint16_t_uint8_t::BW

union	_USB_Setup

struct	_USB_Setup::_SetupPkt_Struc

struct	_DescHeader

struct	_DeviceDescriptor

struct	_ConfigurationDescriptor

struct	_HIDDescriptor

struct	_InterfaceDescriptor

struct	_EndpointDescriptor

Macros
#define	USBH_NULL ((void *)0)

#define	FALSE 0

#define	TRUE 1

#define	ValBit(VAR, POS) (VAR & (1 << POS))

#define	SetBit(VAR, POS) (VAR \|= (1 << POS))

#define	ClrBit(VAR, POS) (VAR &= ((1 << POS)^255))

#define	LE16(addr)

#define	USB_LEN_DESC_HDR 0x02

#define	USB_LEN_DEV_DESC 0x12

#define	USB_LEN_CFG_DESC 0x09

#define	USB_LEN_IF_DESC 0x09

#define	USB_LEN_EP_DESC 0x07

#define	USB_LEN_OTG_DESC 0x03

#define	USB_LEN_SETUP_PKT 0x08

#define	USB_REQ_DIR_MASK 0x80

#define	USB_H2D 0x00

#define	USB_D2H 0x80

#define	USB_REQ_TYPE_STANDARD 0x00

#define	USB_REQ_TYPE_CLASS 0x20

#define	USB_REQ_TYPE_VENDOR 0x40

#define	USB_REQ_TYPE_RESERVED 0x60

#define	USB_REQ_RECIPIENT_DEVICE 0x00

#define	USB_REQ_RECIPIENT_INTERFACE 0x01

#define	USB_REQ_RECIPIENT_ENDPOINT 0x02

#define	USB_REQ_RECIPIENT_OTHER 0x03

#define	USB_REQ_GET_STATUS 0x00

#define	USB_REQ_CLEAR_FEATURE 0x01

#define	USB_REQ_SET_FEATURE 0x03

#define	USB_REQ_SET_ADDRESS 0x05

#define	USB_REQ_GET_DESCRIPTOR 0x06

#define	USB_REQ_SET_DESCRIPTOR 0x07

#define	USB_REQ_GET_CONFIGURATION 0x08

#define	USB_REQ_SET_CONFIGURATION 0x09

#define	USB_REQ_GET_INTERFACE 0x0A

#define	USB_REQ_SET_INTERFACE 0x0B

#define	USB_REQ_SYNCH_FRAME 0x0C

#define	USB_DESC_TYPE_DEVICE 1

#define	USB_DESC_TYPE_CONFIGURATION 2

#define	USB_DESC_TYPE_STRING 3

#define	USB_DESC_TYPE_INTERFACE 4

#define	USB_DESC_TYPE_ENDPOINT 5

#define	USB_DESC_TYPE_DEVICE_QUALIFIER 6

#define	USB_DESC_TYPE_OTHER_SPEED_CONFIGURATION 7

#define	USB_DESC_TYPE_INTERFACE_POWER 8

#define	USB_DESC_TYPE_HID 0x21

#define	USB_DESC_TYPE_HID_REPORT 0x22

#define	USB_DEVICE_DESC_SIZE 18

#define	USB_CONFIGURATION_DESC_SIZE 9

#define	USB_HID_DESC_SIZE 9

#define	USB_INTERFACE_DESC_SIZE 9

#define	USB_ENDPOINT_DESC_SIZE 7

#define	USB_DESC_DEVICE ((USB_DESC_TYPE_DEVICE << 8) & 0xFF00)

#define	USB_DESC_CONFIGURATION ((USB_DESC_TYPE_CONFIGURATION << 8) & 0xFF00)

#define	USB_DESC_STRING ((USB_DESC_TYPE_STRING << 8) & 0xFF00)

#define	USB_DESC_INTERFACE ((USB_DESC_TYPE_INTERFACE << 8) & 0xFF00)

#define	USB_DESC_ENDPOINT ((USB_DESC_TYPE_INTERFACE << 8) & 0xFF00)

#define	USB_DESC_DEVICE_QUALIFIER ((USB_DESC_TYPE_DEVICE_QUALIFIER << 8) & 0xFF00)

#define	USB_DESC_OTHER_SPEED_CONFIGURATION ((USB_DESC_TYPE_OTHER_SPEED_CONFIGURATION << 8) & 0xFF00)

#define	USB_DESC_INTERFACE_POWER ((USB_DESC_TYPE_INTERFACE_POWER << 8) & 0xFF00)

#define	USB_DESC_HID_REPORT ((USB_DESC_TYPE_HID_REPORT << 8) & 0xFF00)

#define	USB_DESC_HID ((USB_DESC_TYPE_HID << 8) & 0xFF00)

#define	USB_EP_TYPE_CTRL 0x00

#define	USB_EP_TYPE_ISOC 0x01

#define	USB_EP_TYPE_BULK 0x02

#define	USB_EP_TYPE_INTR 0x03

#define	USB_EP_DIR_OUT 0x00

#define	USB_EP_DIR_IN 0x80

#define	USB_EP_DIR_MSK 0x80

#define	USB_MSC_CLASS 0x08

#define	USB_HID_CLASS 0x03

#define	HID_BOOT_CODE 0x01

#define	HID_KEYBRD_BOOT_CODE 0x01

#define	HID_MOUSE_BOOT_CODE 0x02

#define	DATA_STAGE_TIMEOUT 5000

#define	NODATA_STAGE_TIMEOUT 50

#define	USBH_CONFIGURATION_DESCRIPTOR_SIZE

#define	CONFIG_DESC_wTOTAL_LENGTH

Typedefs
typedef union _USB_Setup	USB_Setup_TypeDef

typedef struct _DescHeader	USBH_DescHeader_t

typedef struct _DeviceDescriptor	USBH_DevDesc_TypeDef

typedef struct _ConfigurationDescriptor	USBH_CfgDesc_TypeDef

typedef struct _HIDDescriptor	USBH_HIDDesc_TypeDef

typedef struct _InterfaceDescriptor	USBH_InterfaceDesc_TypeDef

typedef struct _EndpointDescriptor	USBH_EpDesc_TypeDef

Detailed Description

Definitions used in the USB host library.

Author: MCD Application Team

Version: V2.0.0

Date: 22-July-2011

Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.
