usb_core.h File Reference

Header of the Core Layer. More...

#include "usb_conf.h"
#include "usb_regs.h"
#include "usb_defines.h"

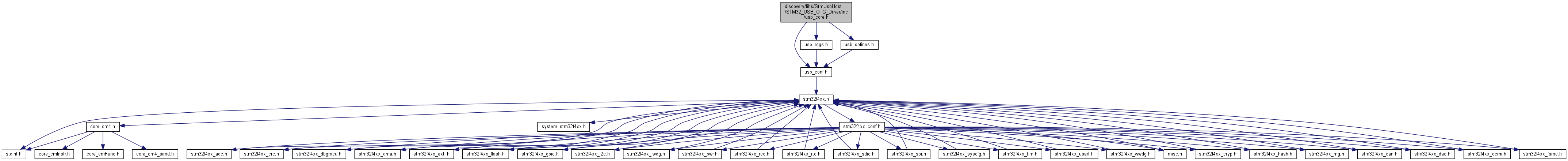

Include dependency graph for usb_core.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	USB_OTG_hc
struct	USB_OTG_ep
struct	USB_OTG_core_cfg
struct	usb_setup_req
struct	_Device_TypeDef
struct	USB_OTG_hPort
struct	_Device_cb
struct	_USBD_USR_PROP
struct	_DCD
struct	_HCD
struct	_OTG
struct	USB_OTG_handle

Macros
#define	USB_OTG_EP0_IDLE   0
#define	USB_OTG_EP0_SETUP   1
#define	USB_OTG_EP0_DATA_IN   2
#define	USB_OTG_EP0_DATA_OUT   3
#define	USB_OTG_EP0_STATUS_IN   4
#define	USB_OTG_EP0_STATUS_OUT   5
#define	USB_OTG_EP0_STALL   6
#define	USB_OTG_EP_TX_DIS   0x0000
#define	USB_OTG_EP_TX_STALL   0x0010
#define	USB_OTG_EP_TX_NAK   0x0020
#define	USB_OTG_EP_TX_VALID   0x0030
#define	USB_OTG_EP_RX_DIS   0x0000
#define	USB_OTG_EP_RX_STALL   0x1000
#define	USB_OTG_EP_RX_NAK   0x2000
#define	USB_OTG_EP_RX_VALID   0x3000
#define	MAX_DATA_LENGTH   0xFF

Typedefs
typedef struct USB_OTG_hc	USB_OTG_HC
typedef struct USB_OTG_hc *	PUSB_OTG_HC
typedef struct USB_OTG_ep	USB_OTG_EP
typedef struct USB_OTG_ep *	PUSB_OTG_EP
typedef struct USB_OTG_core_cfg	USB_OTG_CORE_CFGS
typedef struct USB_OTG_core_cfg *	PUSB_OTG_CORE_CFGS
typedef struct usb_setup_req	USB_SETUP_REQ
typedef struct _Device_TypeDef	USBD_DEVICE
typedef struct _Device_TypeDef *	pUSBD_DEVICE
typedef struct USB_OTG_hPort	USB_OTG_hPort_TypeDef
typedef struct _Device_cb	USBD_Class_cb_TypeDef
typedef struct _USBD_USR_PROP	USBD_Usr_cb_TypeDef
typedef struct _DCD	DCD_DEV
typedef struct _DCD *	DCD_PDEV
typedef struct _HCD	HCD_DEV
typedef struct _HCD *	USB_OTG_USBH_PDEV
typedef struct _OTG	OTG_DEV
typedef struct _OTG *	USB_OTG_USBO_PDEV
typedef struct USB_OTG_handle	USB_OTG_CORE_HANDLE
typedef struct USB_OTG_handle *	PUSB_OTG_CORE_HANDLE

Enumerations
enum	USB_OTG_STS { USB_OTG_OK = 0, USB_OTG_FAIL }
enum	HC_STATUS {   HC_IDLE = 0, HC_XFRC, HC_HALTED, HC_NAK,   HC_NYET, HC_STALL, HC_XACTERR, HC_BBLERR,   HC_DATATGLERR }
enum	URB_STATE {   URB_IDLE = 0, URB_DONE, URB_NOTREADY, URB_ERROR,   URB_STALL }
enum	CTRL_STATUS {   CTRL_START = 0, CTRL_XFRC, CTRL_HALTED, CTRL_NAK,   CTRL_STALL, CTRL_XACTERR, CTRL_BBLERR, CTRL_DATATGLERR,   CTRL_FAIL }

Functions
USB_OTG_STS	USB_OTG_CoreInit (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_CoreInit Initializes the USB_OTG controller registers and prepares the core device mode or host mode operation. More...
USB_OTG_STS	USB_OTG_SelectCore (USB_OTG_CORE_HANDLE *pdev, USB_OTG_CORE_ID_TypeDef coreID)
	USB_OTG_SelectCore Initialize core registers address. More...
USB_OTG_STS	USB_OTG_EnableGlobalInt (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_EnableGlobalInt Enables the controller's Global Int in the AHB Config reg. More...
USB_OTG_STS	USB_OTG_DisableGlobalInt (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_DisableGlobalInt Enables the controller's Global Int in the AHB Config reg. More...
void *	USB_OTG_ReadPacket (USB_OTG_CORE_HANDLE *pdev, uint8_t *dest, uint16_t len)
	USB_OTG_ReadPacket : Reads a packet from the Rx FIFO. More...
USB_OTG_STS	USB_OTG_WritePacket (USB_OTG_CORE_HANDLE *pdev, uint8_t *src, uint8_t ch_ep_num, uint16_t len)
	USB_OTG_WritePacket : Writes a packet into the Tx FIFO associated with the EP. More...
USB_OTG_STS	USB_OTG_FlushTxFifo (USB_OTG_CORE_HANDLE *pdev, uint32_t num)
	USB_OTG_FlushTxFifo : Flush a Tx FIFO. More...
USB_OTG_STS	USB_OTG_FlushRxFifo (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_FlushRxFifo : Flush a Rx FIFO. More...
uint32_t	USB_OTG_ReadCoreItr (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_ReadCoreItr : returns the Core Interrupt register. More...
uint32_t	USB_OTG_ReadOtgItr (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_ReadOtgItr : returns the USB_OTG Interrupt register. More...
uint8_t	USB_OTG_IsHostMode (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_IsHostMode : Check if it is host mode. More...
uint8_t	USB_OTG_IsDeviceMode (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_IsDeviceMode : Check if it is device mode. More...
uint32_t	USB_OTG_GetMode (USB_OTG_CORE_HANDLE *pdev)
	USB_OTG_GetMode : Get current mode. More...
USB_OTG_STS	USB_OTG_PhyInit (USB_OTG_CORE_HANDLE *pdev)
USB_OTG_STS	USB_OTG_SetCurrentMode (USB_OTG_CORE_HANDLE *pdev, uint8_t mode)
	USB_OTG_SetCurrentMode : Set ID line. More...

Detailed Description

Header of the Core Layer.

Author

MCD Application Team

Version

V2.0.0

Date

22-July-2011

Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics
