SPI_Exported_Constants

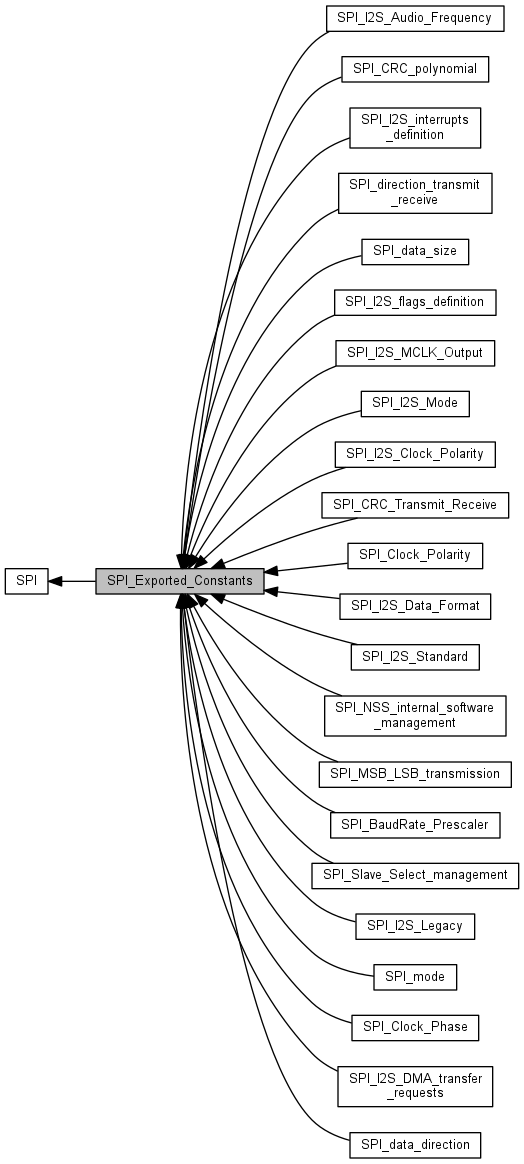

Collaboration diagram for SPI_Exported_Constants:

Modules
	SPI_data_direction
	SPI_mode
	SPI_data_size
	SPI_Clock_Polarity
	SPI_Clock_Phase
	SPI_Slave_Select_management
	SPI_BaudRate_Prescaler
	SPI_MSB_LSB_transmission
	SPI_I2S_Mode
	SPI_I2S_Standard
	SPI_I2S_Data_Format
	SPI_I2S_MCLK_Output
	SPI_I2S_Audio_Frequency
	SPI_I2S_Clock_Polarity
	SPI_I2S_DMA_transfer_requests
	SPI_NSS_internal_software_management
	SPI_CRC_Transmit_Receive
	SPI_direction_transmit_receive
	SPI_I2S_interrupts_definition
	SPI_I2S_flags_definition
	SPI_CRC_polynomial
	SPI_I2S_Legacy

Macros
#define	IS_SPI_ALL_PERIPH(PERIPH)
#define	IS_SPI_ALL_PERIPH_EXT(PERIPH)
#define	IS_SPI_23_PERIPH(PERIPH)
#define	IS_SPI_23_PERIPH_EXT(PERIPH)
#define	IS_I2S_EXT_PERIPH(PERIPH)

Detailed Description

Macro Definition Documentation

#define IS_I2S_EXT_PERIPH

(

PERIPH

)

Value:

(((PERIPH) == I2S2ext) || \
                                    ((PERIPH) == I2S3ext))

#define IS_SPI_23_PERIPH

(

PERIPH

)

Value:

(((PERIPH) == SPI2) || \
                                   ((PERIPH) == SPI3))

#define IS_SPI_23_PERIPH_EXT

(

PERIPH

)

Value:

(((PERIPH) == SPI2)    || \
                                       ((PERIPH) == SPI3)    || \
                                       ((PERIPH) == I2S2ext) || \
                                       ((PERIPH) == I2S3ext))

#define IS_SPI_ALL_PERIPH

(

PERIPH

)

Value:

(((PERIPH) == SPI1) || \
                                   ((PERIPH) == SPI2) || \
                                   ((PERIPH) == SPI3) || \
                                   ((PERIPH) == SPI4) || \
                                   ((PERIPH) == SPI5) || \
                                   ((PERIPH) == SPI6))

#define IS_SPI_ALL_PERIPH_EXT

(

PERIPH

)

Value:

(((PERIPH) == SPI1)    || \
                                       ((PERIPH) == SPI2)    || \
                                       ((PERIPH) == SPI3)    || \
                                       ((PERIPH) == SPI4)    || \
                                       ((PERIPH) == SPI5)    || \
                                       ((PERIPH) == SPI6)    || \
                                       ((PERIPH) == I2S2ext) || \
                                       ((PERIPH) == I2S3ext))
